In order to align complex target assemblies (see below),

or complex 3D target (see below) prior to their insertion into your target chamber, target alignment stations are desirable.

Target

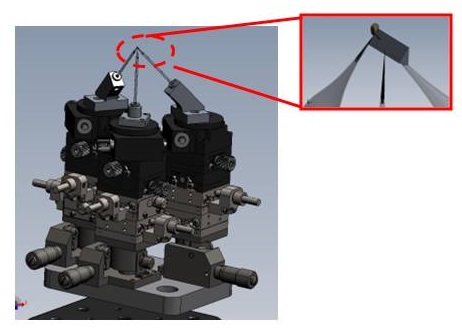

We will customize such station (as shown below) tailored for your needs, with various geometries and angles, using extremely compact solutions that allow less than 10 microns precision. Improved positioning is also possible with the use of piezoelectric motorized solutions.

 Custom alignment station

Custom alignment station
